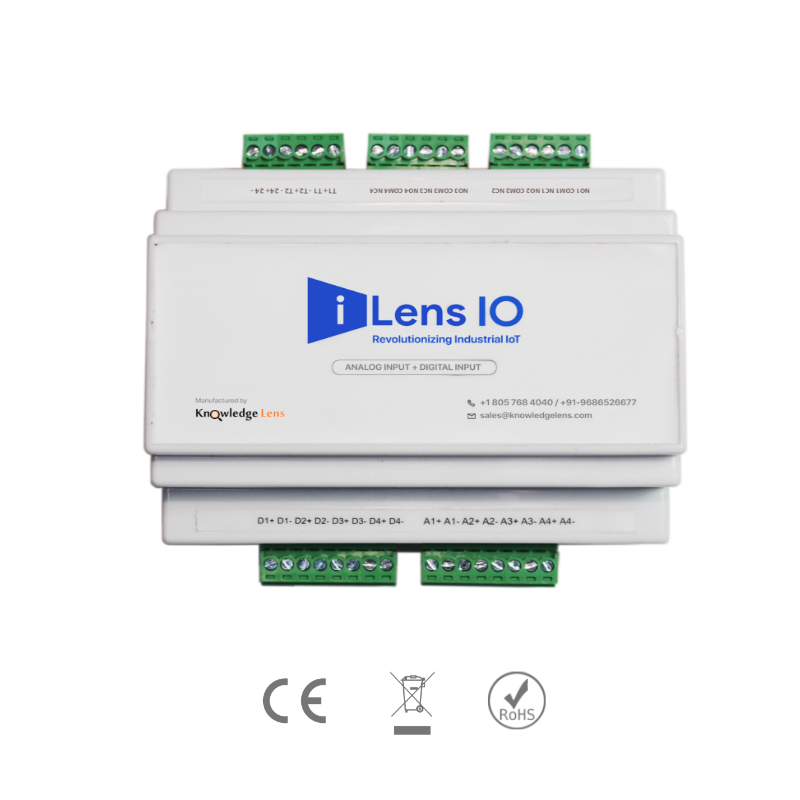

ILENS-IO100
iLens IO Module
Features:
- 4 Channel Analog Input (4-20mA)
- 4 Channel Digital Input
- 4 Channel Relay
- 2 Channel Thermocouple interface
| Specifications | |
|---|---|
| Operating Voltage | 5-24V DC |
| Max digital input voltage | 24V |
| Minimum digital input threshold | 1.4V |
| Communication Protocol | Modbus TCP |
| ADC Resolution | 12 bits |
| Max rated Relay input | 10A 240V |
| Network Interface | 2.4GHz WiFi ( a/n ) |
| Dimensions | |
|---|---|
| Mounting | 35mm DIN Rail |
| Length x Width x Height (in mm) | 106 × 91 × 58 |
