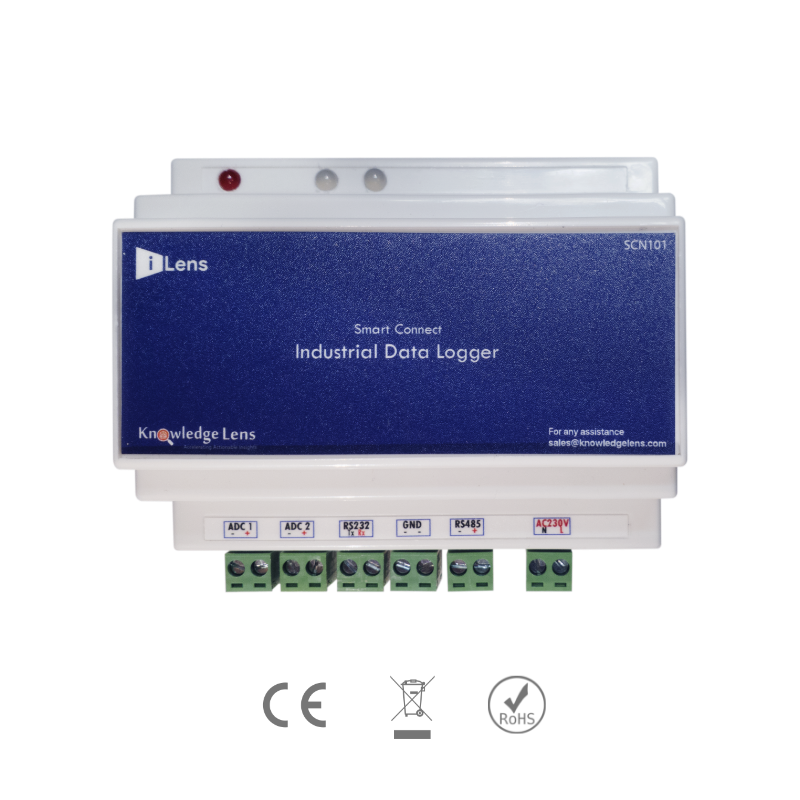

ILENS-SCN101
iLens Smart Connect N Series
Features:
- Modbus RTU through RS232 & RS485
- Web and Mobile based configuration
- 16 GB External Storage for offline data store
| Specifications | |
|---|---|
| Processor | Xtensa |
| 32-bit LX6 Microprocessor @ 80 MHz | |
| Dual Core | |
| RAM | 520 KB of on-chip SRAM for data and instructions |
| ROM | 4MB SPI Flash |
| Memory | 16GB MMC |
| Input Power | 230V AC/ 6-36V DC, 100mA |
| Environment | Operating temperature, 0–85°C |
| Connectivity Port | |
|---|---|
| RS232 | 1 x RS232 |
| RS485 | 1 x RS485 |
| Analog | 2 x ADC(4-20mA) 12 bit |
